Reef Octo Pulse Wave Pump OP-2

Overview

Generates Massive Water Movement

Introducing our new OCTO series Direct Current（DC）Wave Pump, OCTO Pulse features a Multiple Angle Adjustment, an all new controller with a 0-10V port,4 pre-program pulsing patterns, high quality ceramic shaft and bearing to reduce wear and tear, and the latest variable speeds flow technology for refined control, enhanced performance, energy-efficiency and safer operations.

With the bespoke controller, users have full control over the flow rates by selecting amongst eight preset speed settings; indicated by eight lit LEDs. A 15 or 60 minutes feed mode can also be engaged or disengaged with the push of a button

Available in 2 models – OP-2, OP-4

Warranty (against manufacturing defect):

2 years* – pump motor only

Features & Benefits

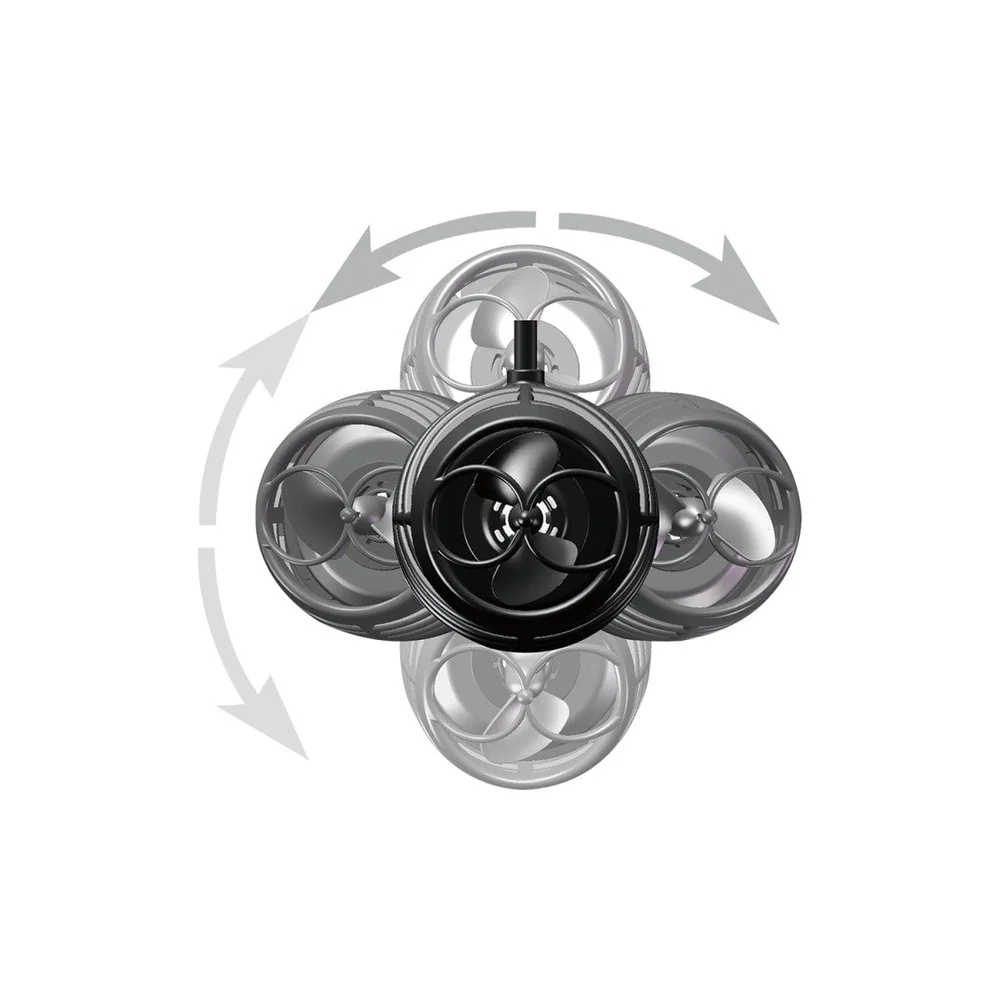

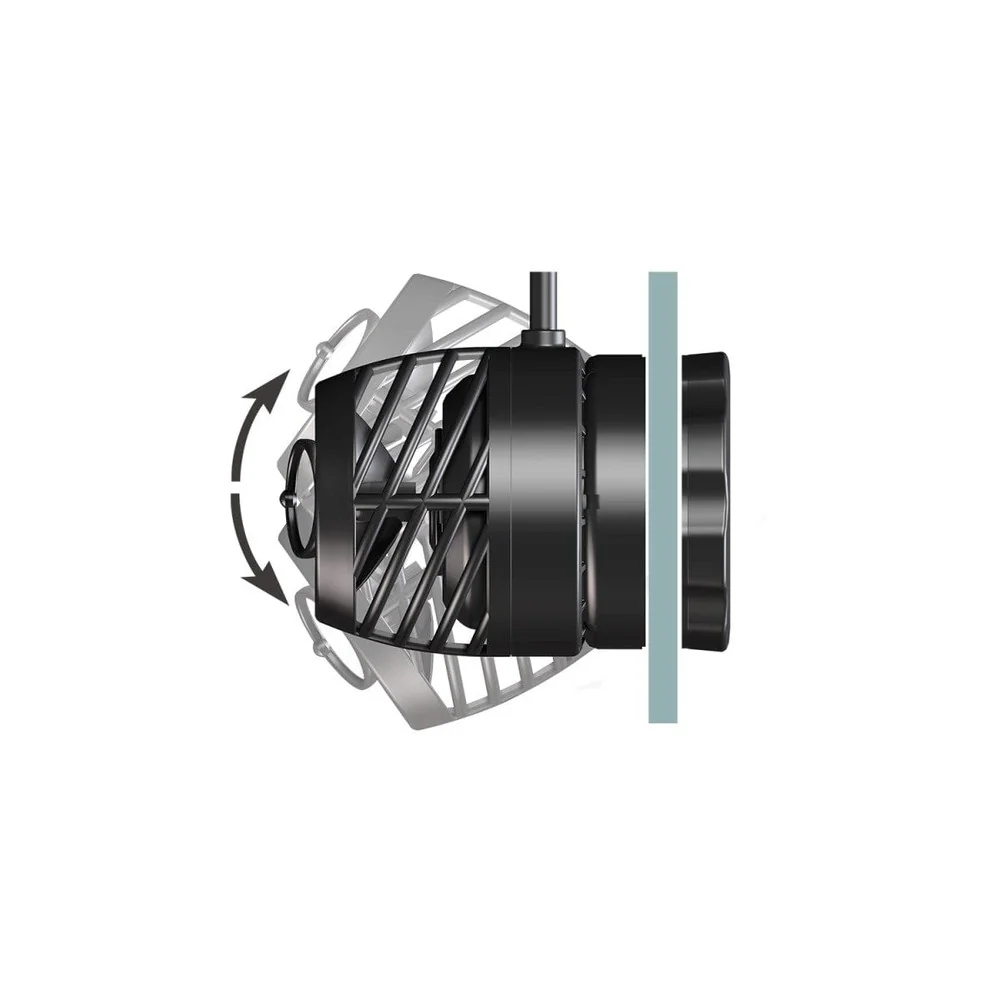

• 360°Range of Adjustment

• Low-profile Magnetic Mount

• Strong Rare-earth Magnet Impeller

• Compast & Durable Construction

• Silent Operation

• 4 Preprogrammed Flow Patterns

• Dual Feed Mode – 15 or 60 min

• 0-10V External Controller Connection

Technical Data

OCTO Pulse Wave Pump
Product	Maximum Flow Rate		Power	Tank Water Volume		Suggested Tank Size		Max Wall Thickness
	LPH	GPH	w	L	US GAL	cm	in	mm	in
OP-2	6000	1585	5-10	80-300	21-80	40-100	16-40	12	1/2
OP-4	17000	4490	11-32	300-1800	80-475	100-180	40-71	15	5/8
