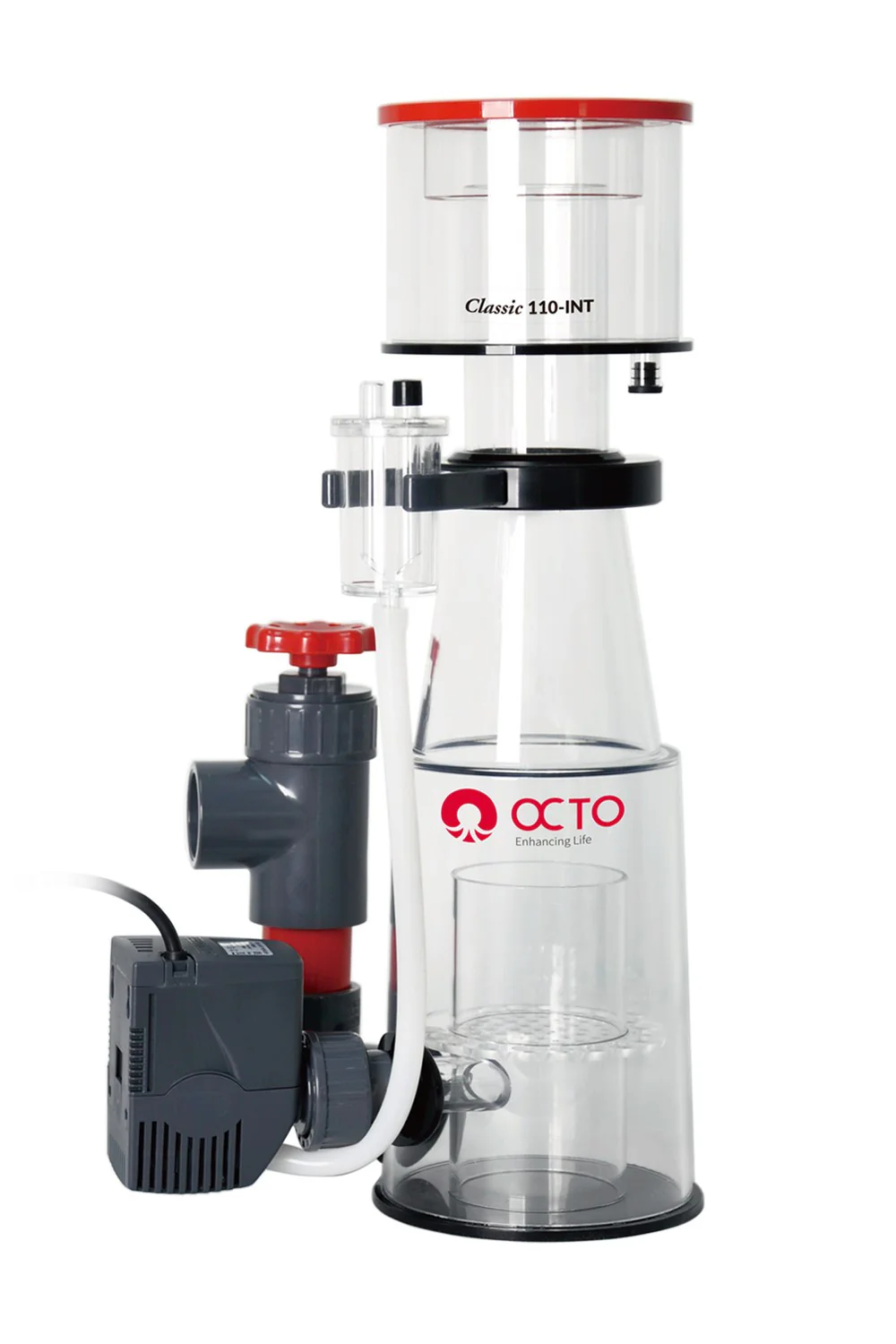

Reef Octo Classic 110INT - Hybrid Conical Body (500L)

Overview

Featuring a small footprint, the OCTO series Classic an in-sump protein skimmer ideal for aquariums with limited sump space. Classic Skimmers features high-quality cast acrylic body construction, easy disassembly for maintenance and is run by our very own “air shredding” Aquatrance pump. A feed pump is not required as water is drawn directly from the sump.

Available in 3 models – Classic 110-INT, 150-INT and 200-INT features hybrid conical body with a vented valve output and a precision control gate valve.

Warranty (against manufacturing defect):

2 years* – pump motor only

Features & Benefits

• Superior in-sump performance

• AQ pump specifically made for protein skimmer

• Precision water level control output valve

• Quiet operation

• High quality hand-made acrylic construction

• Waste drainage

• Easy maintenance

Technical Data

1. Skimmer

Product	Wet/Dry	Pump Power		Cup Diameter		Neck Diameter		Footprint				Height		Output Size	Tank Volume
		W	W	mm	inch	mm	inch	mm		inch		mm	inch		L	US Gal
		50HZ	60HZ
Classic 110-INT	Wet	8	9	120	4.7	60	2.4	260	175	10.2	6.9	500	19.7	ø40 mm (1-1/4″)	500	132
Classic 150-INT	Wet	17	18	150	5.9	80	3.2	315	220	12.4	8.7	560	22.1	ø40 mm (1-1/4″)	800	211
Classic 200-INT	Wet	35	35	200	7.9	120	4.7	370	260	14.6	10.2	610	24	ø50 mm (1-1/2″)	1200	317

2. Skimmer Pump

Product	Model No.	Wet/Dry	Air Intake				Power		Maximum Flow Rate				Connection Size ( outlet)
			50HZ		60HZ		50HZ	60HZ	50HZ		60HZ
			LPH	GPH	LPH	GPH	W	W	LPH	GPH	LPH	GPH
Classic 110-INT	AQ-1000S	Both	420	111	454	120	8	9	350	92	350	92	ø25 (3/4″)
Classic 150-INT	AQ-2000S	Both	720	190	719	190	17	18	750	198	750	198	ø25 (3/4″)
Classic 200-INT	AQ-3000S	Both	880	232	871	230	35	35	800	211	800	211	ø32 (1″)

Electrical or other Certification

Pumps (Aquatrance) – CE certified
